20 Liter Bottled Water Filling Machine With CE ISO Certificates

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	QGF
Certification :	CE ISO
Price :	USD2000-60000 1Set
Payment Terms :	T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

20 Liter Bottled Water Filling Machine With CE ISO Certificates

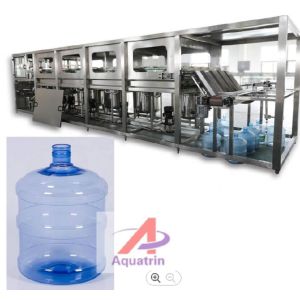

5 gallon water production line consists of empty bottle
transferring, internal bottle brushing, auto de-capper, external
bottle brushing, rinsing filling capping, light checker, neck
shrinker, bagging, full bottle transferring and pallitizer,
enabling full automatic intelligent production. The whole process
is strictly controlled, which ensures the complete compliance with
customer's local standards and regulations set up by their Health
Department. During filling process, secondary pollution is strictly
controlled, which makes it an ultra-clean production line. It's a
most ideal, acknowledged and reliable automatic gallon water
production line for companies and factories. This line is mainly
used for filling pure water or mineral water of 3 & 5 gallon
bottle.

Main Technology Parameter:
ModelQGF-120QGF-240QGF-450QGF-600QGF-900QGF-1200
Filling Heads123468
Volume(L)18.9
Barrel Size(mm)φ270×490
capacity(b/h)120-150240-300400-450500-600700-8001000-1200
Gas Pressure(Mpa)0.4-0.60.4-0.60.4-0.60.60.60.6
Gas Consumption(m 3 /min)0.370.60.811.21.5
Moto Power(kw)1.381.753.87.5913.5
Rated Voltage(V)380V/50Hz
Weight(kg)68012001600200035004500

Details Images
Water treatment system
Processing included: quartz sand filter, active carbon filter,
sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone
generator, finished water tank
Barrel outside washing machine
Automatic barrel loading machine

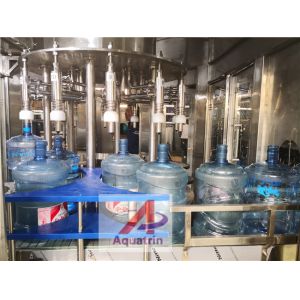

Filling part
Capping part
Shrink sleeve labeling machine
Automatic bagging machine
