CE 380V CGF 3PH Water Bottle Filling Machine 3KW For Carbonated Drink

Ask Lasest Price
Brand Name :	Aquatrin
Model Number :	CGF
Certification :	ISO CE
Price :	USD15000-60000 1Set
Payment Terms :	T/T
Supply Ability :	10units per month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

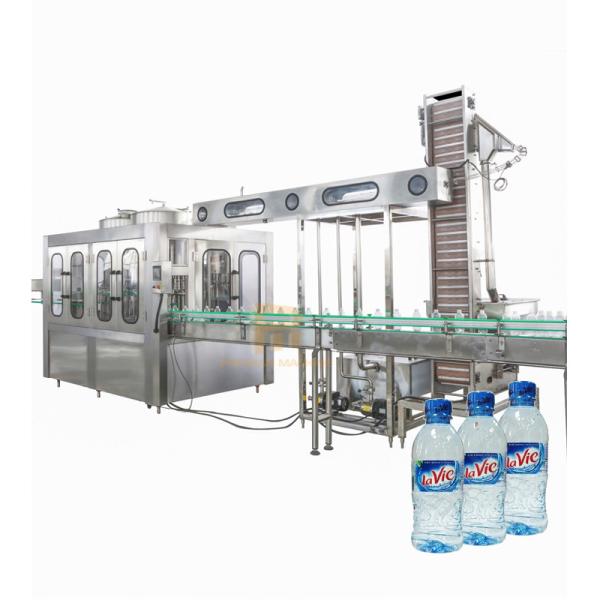

CE 380V CGF 3PH Water Bottle Filling Machine 3KW For Carbonated Drink

Water fFilling lline

Product Description

Technical Specifications
Model	CGF
Output Capacity	2000-25000Bottles/Hr at 500ml volume
Nos of Rinse Valves	as request
Nos of Fill Heads	as request
Nos of Cap Heads	as request
Applicable Bottle Diameter	Φ50 mm ~Φ90 mm
Applicable Bottle Height	150 mm - 310 mm
Applicable Cap Diameter	Φ25 mm ~Φ35 mm
Applicable Cap Height	15 mm - 25 mm Screw Cap
Supply Voltage	220/380V 50/60HZ 3PH
Main Motor	3KW
specification can be changed as per customer requirements

Air Conveyor System

Air filter is positioned at every entrance of air fan, to prevent
dust blown into bottles. Bottles are blocked on the neck in the
conveyor and transported into filling machine by blowing power.

Belt Conveyor System

according to the requirements of different users, different
production capacity, tank type, a combination of different ways of
conveying module, motor control mode, with great flexibility.

Automatic PVC shrink labeling machine

The machine can be used for various bottle types, such as: round
bottle, square bottle, flat bottle, curve bottle, cup, and so on.

Blow Dryer

This machine installed after the filling machine, In order to dry
the bottles which outside with some water drop, This machine is
used to removing the water outside the bottle surface, the blowing
capacity can be adjusted through the button.

Automatic PE film shrink wrapping machine

(1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L
large package:3*3,3*4 Small Package:2*2,2*3

PET bottle making machine

PET Bottle Making Machine is suitable for producing PET plastic
containers and bottles in all shapes.

CE 380V CGF 3PH Water Bottle Filling Machine 3KW For Carbonated Drink
