New Water Treatment And Bottling Plants Ro Drinking Bore Water
Filter Price Water Treatment Plant
Product Description

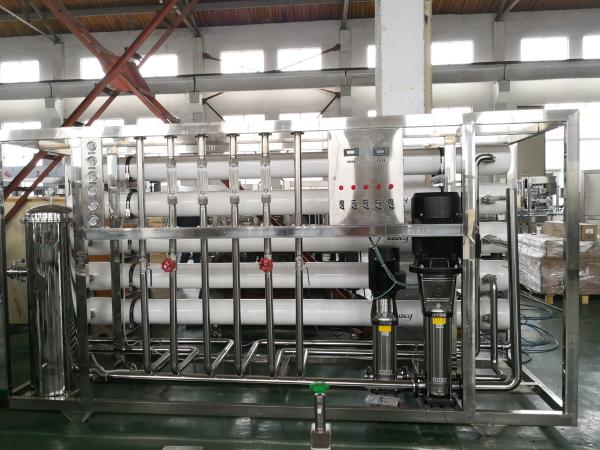

RO Drinking Water Treatment Plant/Machine/Equipment in Cheap Price
This water treatment system is mainly used to get pure
water,mineral water.pre-treatment water for all kinds of
beversge.it can effectively get rid of suspended substance amell
and color in raw source water.And it filter
organics,microorganism,chloride,colloidal particles,and residual
chlorine.Besides.this system filters heavy meatal ion to reduce
hardness of the water,to make it reach hardness of the water,to
make it reach to standard of drinking water.
Filter
--Silica Sand filter
When the water through the machine, it machine will stop suspend
substance through the good quality silica sand. and also protect
the following machines and also clean the water this machine can
achieve the back washing itself through the manual valve device,
and can prolong the life of machine also.
-- Active carbon filter
This Active carbon filter is simple and reliable, easy to maintain.
It is suitable for the places which are strict with water quality
like enterprises, hotel, army, station and dock. All in all, it is
a really good water supply device for both industry and living.
-- Sodium ion exchanger
This machine we also called softner , that Soften theory is
Exchanging Na++ of resin itself instead of Ca++Mg++ of water
resource with Ion to make water resource soften and become soft
water.
Reverse Osmosis
The device’s key part is reverse osmosis membranes that is from the
America, it has a good performance to eliminate salts and the high
pressure pump is from a high quality pump producer in China, it’s
easy to handle for its simple structure. The source water, in the
case that the conductivity is less than 300us/CM, can reach the
national standards totally after treatment by this device, it’s the
most ideal equipment for water treatment
UV Sterilizer Machine
The products adopt a high-intensity, long-lived UV germicidal lamp,
the device is reasonable, compact, and adopts the structure of
secondary disinfection, so health indicators completely according
to the state standard.
| 1.Water pump |
| Picture |
|
| Detials | 1, water source pump Brand: China Nanfang Southern Pump Flowing:3000L/h Normal
temperature type: -15℃~+70℃ Hot water type: +70℃~+110℃ Highest ambient temperature: +40℃
Max.operation pressure :10 bar Max.inlet pressure is limited by max.operation pressure Motor Power: 0.75KW Running speed: 2900rounds/min |
| 2. Sodium ion exchanger |
| Picture |
|
| Detail | It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside,it will protect the stainless steel from silica sand and carbon material,make the filters work much much longer than normal.
That Soften theory is Exchanging Na++ of resin itself instead of
Ca++Mg++ of water resource with Ion to make water resource soften
and become soft water. Model : SN2-12 Capacity : 12T/H Size: Φ1200*2000mm Material :SUS304stainless steel including pipes and valves and
regenesis barreled Filtrate medium:731colophony (225kg) |
| 3. Active carbon filter |
| Picture |
|
| Detail | It can remove the pigment, smell and a large number of biological organisms in the water Soften the water.
Model :SSJ-12 Capacity : 12T/H Material :SUS304stainless steel including valve Working pressure: 0.25MPa Chaotic degree: maximum 5mg/L Size: Φ650*2000mm Water quality after 4reatment: need to be accorded with GB5749-85
national standard Filtrate medium: Active carbon (250kg)
Our filter tank covered with natural rubber inside,so the tank working life will be much much longer than before,than others. |
| 4. Silica Sand filter |
| Picture |
|
| Detail | It can remove the suspended solids and gluten particles in the
water, thus reduce the turbidity of water.
When the water through the machine, The machine will stop suspend
substance through the good quality silica sand. Model :SYS-12 Capacity : 12T/H Thickness of tank:3mm Material : SUS304 stainless steel Filtrate medium: High quality sand (300kg) Size: Φ650*2000mm
Our filter tank covered with natural rubber inside,so the tank working life will be much much longer than before,than others. |
| 5. Precision filter |
| Picture |
|
| Details | This machine is made of stainless steel as a small tank which
contains precision filter membrane, it only allows un-treated water go
through the membrane, and does not allow any liquid go through another
part, so it can filter the un-treated water. Capacity :12T/H Working pressure: ≤0.3Mpa Quantity of filter pole:4pieces Material
:SUS304stainless steel Filtrate medium : Polypropylene membrane (PP MEMBRANE) |
| 6. Ozone generator Sterilizer |
| Picture |
|
| Details | Name Ozone generator Ozone output(g/h) 18G Cooling Air cooling Max zone concentration(g/m3) Oxygen source:25~45 Air source: 5~15 L*W*H(mm) 350*250*630 Weight (kg)200 Power(w) 180 Power Source 220~380V 50~60HZ 110~220V 50~60HZ Gas Source Oxygen: Or use a clean and dry air |
| 7. R.O ,Reverse Osmosis |
| Picture |
|
| Detail |
The Reverse Osmosis device is an equipment to purify the saline
water with the action of pressure difference of semi-permeable
membrane. It is called reverse osmosis, The reverse osmosis can remove more than 97% of the soluble salt
and above 99% of the colloid, microorganism, particles and organic
materials, becoming the best first-choice choice equipment in the
engineering of modern purified water, RO with reverse washing
tank-RO is the heart of water treatment system,so we prepared the
washing tank with clean the inside of RO to make the RO membranes
work longer. The device’s key part is reverse osmosis membranes that is from the America, it has a good performance to eliminate salts and the high
pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the
case that the conductivity is less than 300us/CM, can reach the national
standards totally after treatment by this device, it’s the most
ideal equipment for water treatment. System desalination rate:above 97% High-pressure pump(southern) power:3KW Imported film USA- 8040-5sets Stainless steel membrane shells:5sets Capacity :6m3/h Dimension :L1800×W1100×H1700mm |
