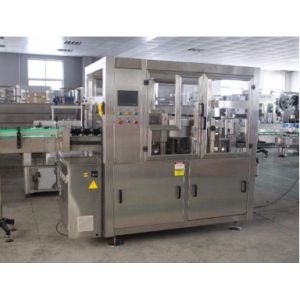

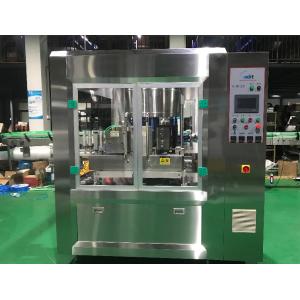

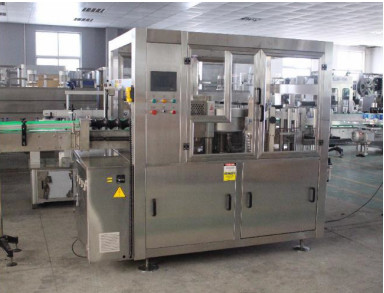

Automatic OPP / BOPP Hot Melt Labeling Machinery for Bottles
Feature:
1. AC 3-Phase Invertor and PLC controlled system.
2. The Hot Melt Labeling Machine Body is built with stainless steel, aluminum alloy and square steel tubes.
3. Structure of square welded tubes and steel beams ensure stable and smooth operations at high speed performance.
4. Centralized lubricating system for simple and effortless on maintenance, lubrication and
cleaning.
5. With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines.
6. Emergency Stop Safety Device which disables the machine when senses an
abnormality.
7. Automatic warning system and alarm will be activated when it is out of label.
8. Include such mechanisms as label-providing, belt-conveying,
label-cutting, wheels-attaching, vacuum-adsorbing, hot
sol-conveyance
The labeling Machine is suitable for all kinds of cylindrical
objects, such as glass bottles, Plastic bottles.jars ,cans etc
1. According to hot melt labeling machine technical parameter.
2. Cut the entire pattern, labels will not deformation, the start
and the terminal paint glue in net, this paint glue system can save
50% glue, label inaccuracy ± 0.05mm, the top and bottom
of the labels press very well, the whole label is smooth, no
mismatch, no leaking glue, no opening.
Bellow is our the technical parameter of our Hot Melt Labelling
Machinery:
SHV-OPP1 | SHV-OPP2 | SHV-OPP3 |
Power | 220/380V 3KW | 220/380V 4KW | 220/380V 5KW |
Machine Size | 2220×1100×2100(mm) | 2220×1100×2100(mm) | 2220×1100×2100(mm) |
Speed | 150BPM(MAX) | 250BPM(MAX) | 350BPM(MAX) |
Bottle Size | 28-125*300(H)mm | 28-125*300(H)mm | 28-125*300(H)mm |
LabelThickness | 0.035-0.07mm | 0.035-0.07mm | 0.035-0.07mm |
Label Material | PVC PET OPS | PVC PET OPS | PVC PET OPS |
Label hight | 30-250mm(MAX) | 30-250mm(MAX) | 30-250mm(MAX) |
Weight | 500Kg | 600Kg | 700Kg |
| Items | Brand |
| Servo motor | Panasonic |
| Frequency converter | CUMARK |
| Photoelectric system | Panasonic |
| Pneumatic system | Festo |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20 - 30 days ,if complete line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
